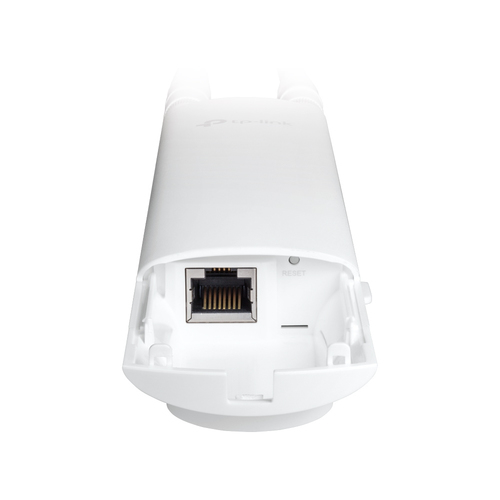

TP-Link Omada EAP225-Outdoor 1200 Mbit/s White Power over Ethernet (PoE)
TP-Link Omada EAP225-Outdoor 1200 Mbit/s White Power over Ethernet (PoE)
SKU : EAP225-OUTDOOR
TP-Link Omada EAP225-Outdoor 1200 Mbit/s White Power over Ethernet (PoE)
Short Description:
TP-Link Omada EAP225-Outdoor, 2.4 GHz, 5 GHz, 1200 Mbit/s, 802.1x RADIUS, 10,100,1000 Mbit/s
Manufacturer part number :
EAP225-OUTDOOR
Vendor
:
TP-Link
Stock
:
0
Description
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.
Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.
Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.
- Durable, weatherproof enclosure for outdoor Wi-Fi applications
- Up to 1200Mbps with 2×2 MIMO technology
- Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
- Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
- High transmission power and high gain antennas provide a long-range coverage area
- Cloud centralized management and Omada app for ultra convenience and easy management
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation
- 2.4 GHz 300 Mbit/s
- 5 GHz 867 Mbit/s
- Maximum data transfer rate: 1200 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
- 802.1x RADIUS
- Power over Ethernet (PoE)
- Antennas quantity: 2 External Detachable antenna
Specifications
Antenna
Antenna gain level (max)
4 dBi
Antennas quantity
2
Antenna type
External
Antenna features
Detachable antenna
Antenna direction type
Omni-directional
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Design
Reset button
Yes
International Protection (IP) code
IP65
Product colour
White
Placement
Pole, Wall
Features
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
6 GHz
No
Virtual LAN features
VLAN mapping
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Maximum data transfer rate
1200 Mbit/s
MIMO
Yes
Quality of Service (QoS) support
Yes
Rate limiting
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Transmitting power (FCC)
22 dBm
Transmitting power (CE)
27 dBm
BeamForming
Yes
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Frequency band
2.4 - 5 GHz
Band steering
Yes
Airtime Fairness (ATF)
Yes
MIMO type
Multi User MIMO
VLAN support
Yes
Logistics data
Harmonized System (HS) code
85176990
Management features
Web-based management
Yes
Syslog
Yes
Operational conditions
Operating temperature (T-T)
-30 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Packaging content
Quantity per pack
1 pc(s)
Quick start guide
Yes
AC adapter included
Yes
Mounting kit
Yes
Packaging data
Package depth
270 mm
Package height
100 mm
Package width
140 mm
Package weight
640 g
Performance
Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Power
Power over Ethernet (PoE)
Yes
Output voltage
24 V
Power consumption (typical)
10.5 W
Power over Ethernet (PoE) type supported
Passive PoE
Security
Service Set Identifier (SSID) features
Multiple SSIDs
MAC address filtering
Yes
Number of SSID supported
16
Access Control List (ACL)
Yes
Security algorithms
802.1x RADIUS
Sustainability
Sustainability compliance
Yes
Weight & dimensions
Width
215 mm
Depth
46 mm
Height
27 mm
