ASUS ROG Strix G16 G614PM-RV007W AMD Ryzen™ 9 8940HX Laptop 40.6 cm (16") WUXGA 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5060 Wi-Fi 6E (802.11ax) Windows 11 Home Black, Grey
- AMD Ryzen™ 9 8940HX Processor
- An NVIDIA® GeForce RTX™ 5060 Laptop GPU with NVIDIA Advanced Optimus
- Dazzling 16-inch WUXGA 1920x1200 165Hz
- Featuring a 16:10 aspect ratio and 100% DCI-P3 coverage
- Game with confidence thanks to Tri-Fan Technology, full-surround vents, and Conductonaut Extreme liquid metal
- Dolby Vision and Dolby Atmos support for immersive content
SKU | G614PM-RV007W |
---|---|
EAN | 4711387969144 |
Manufacturer | ASUS |
Availability | Y |
PDF URLs |
View PDF |

Raise your game. Carry your squad.
Game with confidence thanks to the raw horsepower of the 2024 Strix G16. Powered by an AMD Ryzen™ 9 8940HX and an NVIDIA® GeForce® RTX 5060 (572 AI TOPS) Laptop GPU with a dedicated MUX Switch and NVIDIA Advanced Optimus, be ready to dominate the competition in all of the latest games. Sporting 16-inch and full-surround heat sinks with Tri-fan Technology, the Strix G16 is here to change the way you game.

Power up your play
Draw more frames and win more games with the Strix G and Windows 11 Home. Powered an AMD Ryzen™ 9 8940HX CPU and an NVIDIA GeForce RTX 5060 Laptop GPU with Dynamic Boost, be ready to dominate the competition in all of the latest games. Backed up with a dedicated MUX Switch and NVIDIA Advanced Optimus, the Strix G unlocks the true potential of its hardware. With PCIe Gen4x4 SSD storage and 16GB of 4800MHz DDR5 RAM, large game libraries and intense multitasking sessions are a breeze for this gaming machine.

True-to-Life Graphics
Experience cinematic quality visuals at unprecedented speed with full ray tracing and breakthrough neural rendering technologies.

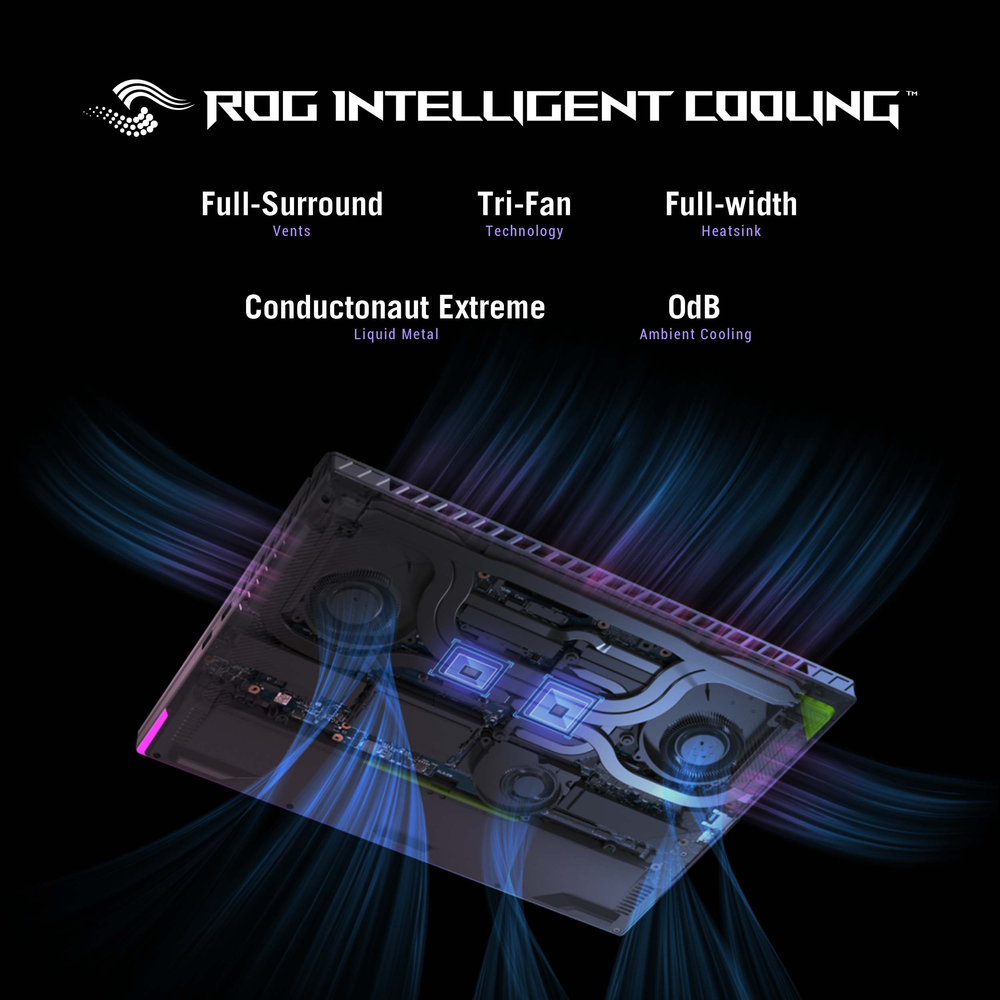

ROG Intelligent Cooling
To accommodate such powerful components, the Strix G’s chassis and motherboard were both designed to accommodate our high-performance full-width heatsink, whose fins were moved even closer to the exhaust vents for more efficient cooling. The full-width heatsink is built from three different sections, surrounding the motherboard with densely-packed fins for a total surface area of 195,509mm², a 92% increase from the 2022 Strix G17. This design maximises the available pathing for hot air to escape the machine and drastically increases overall airflow.
Finally, most gaming laptops have a dual fan cooling system, but the Strix G was able to push the performance envelope even further with the introduction of a third fan that helps keep the GPU and VRAM cool. Paired with seven heatpipes and Conductonaut Extreme liquid metal on both the CPU and GPU the G16’s cooling system is a marvel of engineering.
*Conductonaut Extreme liquid metal is applied to the GPU on models with an RTX™ 4080 GPU only

Designed to win. Built for victory.
The Republic of Gamers was built by those who love to play video games. All ROG designs come with gamers in mind, from the chassis, lighting integration, software controls, and macro functions. These ROG exclusive design features not only give you a competitive advantage, but they make sure you never blend in with the crowd.
![Press the Attack [4-zone]](https://images.icecat.biz/img/bullets/131044571-683076d51196a069692476.jpg)

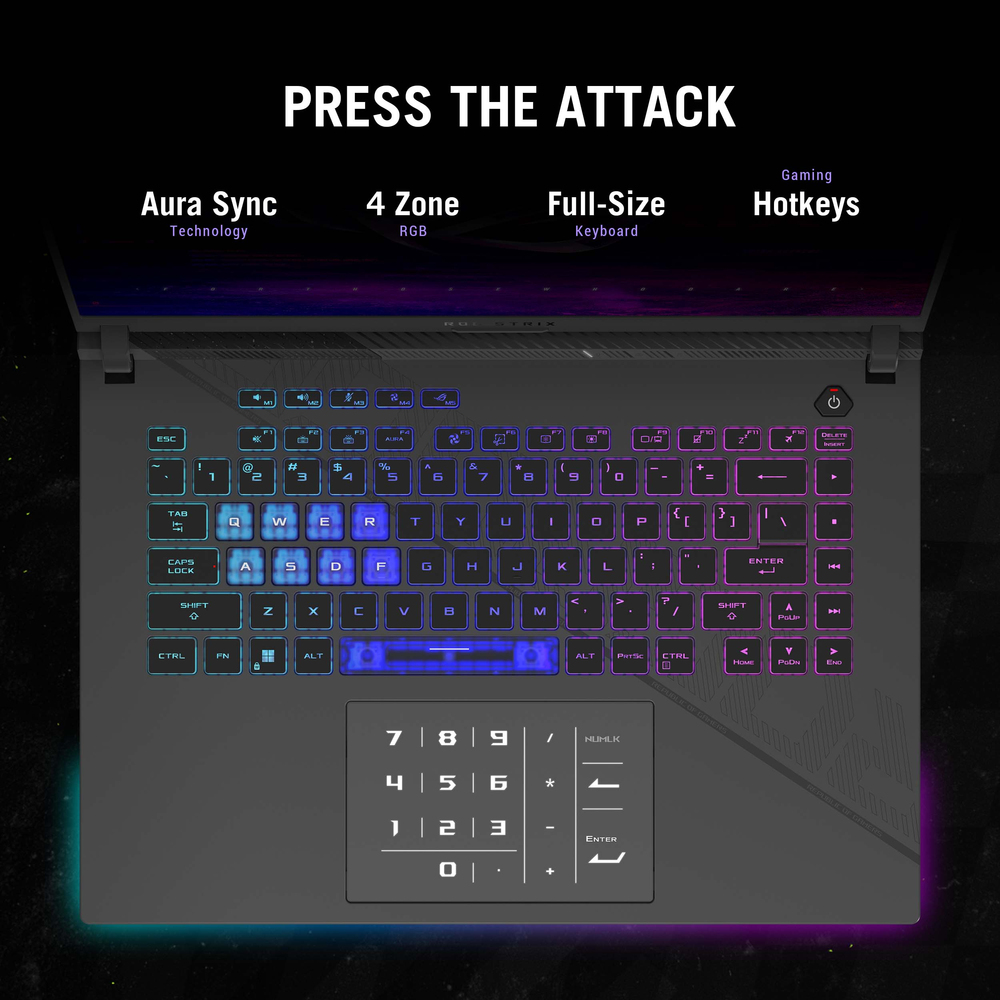

Press the Attack [4-zone]
The difference between victory and defeat can be separated by a single keystroke, so the Strix G16 has a full-size keyboard designed to secure the win. Overstroke technology offers sublime work and play, reducing key actuation and improving responsiveness. Built with gamers in mind, the keyboard features spaced function keys for intuitive identification and dedicated hotkeys for quick access to essential commands. The QWERASDF keys and space bar feature a semi-transparent design, allowing for easy identification even in low light scenarios. Large arrow keys allow for more accurate control in the heat of battle, while a larger touchpad means easier tracking across all of your applications. 4-zone RGB lighting lets you choose from millions of colours to make the Strix G16 uniquely yours.

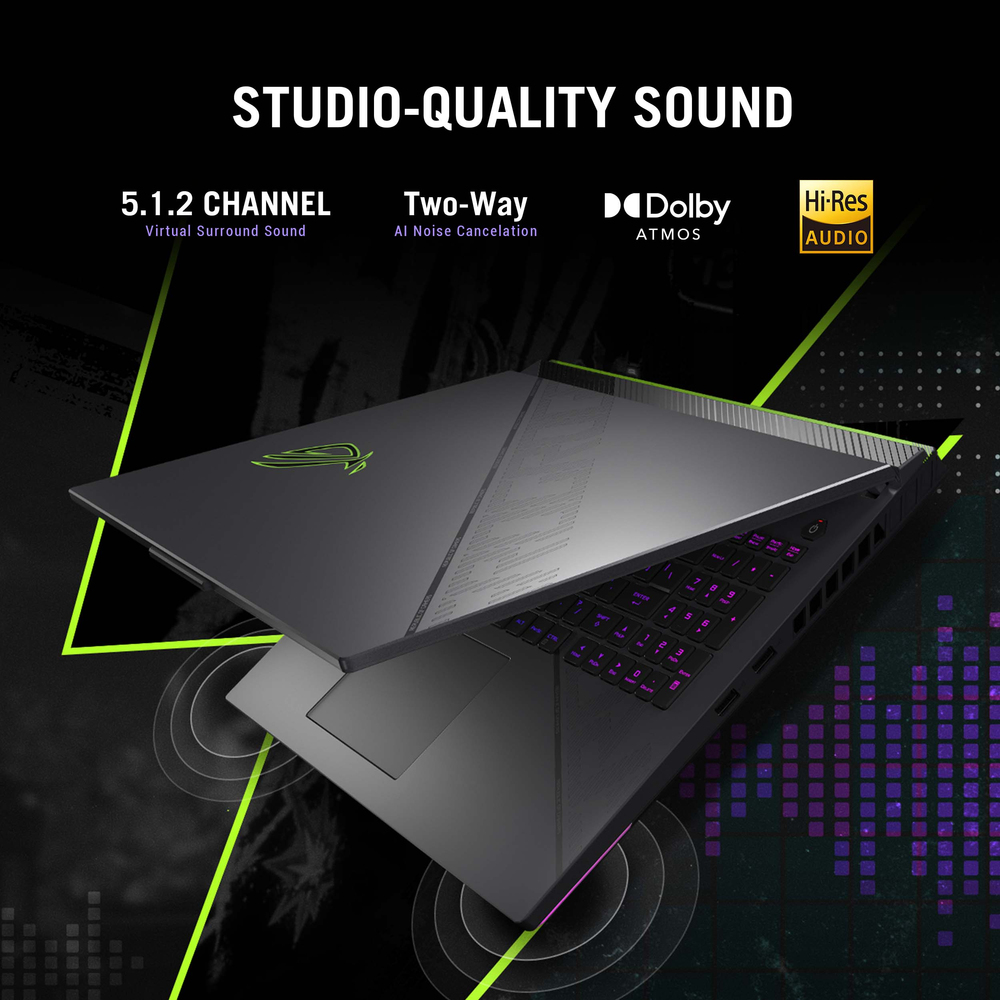

Studio-quality Sound
Dolby Atmos-powered speakers include two tweeters and two downward firing woofers to create an authentic sound stage for your games. Hi-Res audio ensures you hear your music in the same quality it was recorded. Two-Way AI Noise Cancelation processes both incoming and outgoing audio to filter any errant background noises, making sure that your calls, chats and streams come through without distraction.

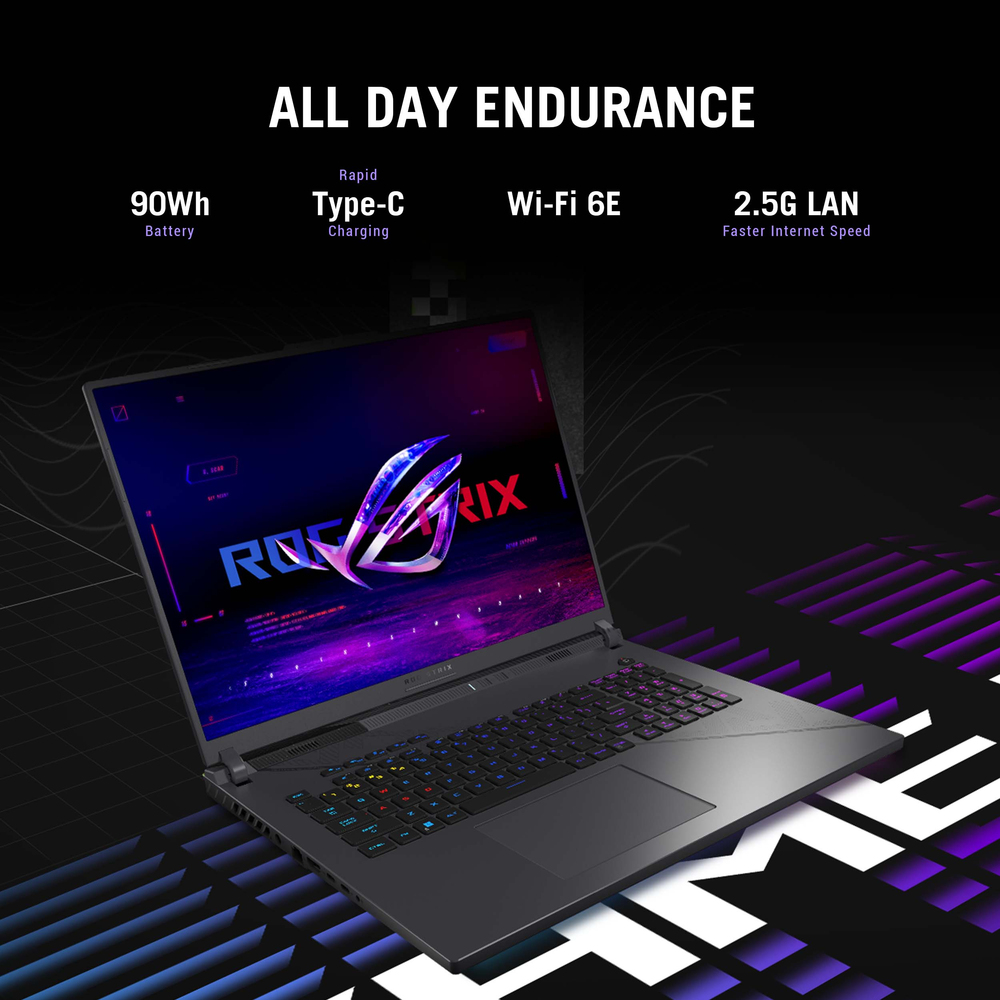

All Day Endurance
The Strix G is ready to go the distance. Featuring a 90Wh battery, the laptop can easily browse the web for hours away from the wall before needing a recharge. For flexibility on the go, USB Type-C charging is supported up to 100W. When charging using the supplied 330W power adapter, the Strix G can recharge from zero to 50% in just 30 minutes.

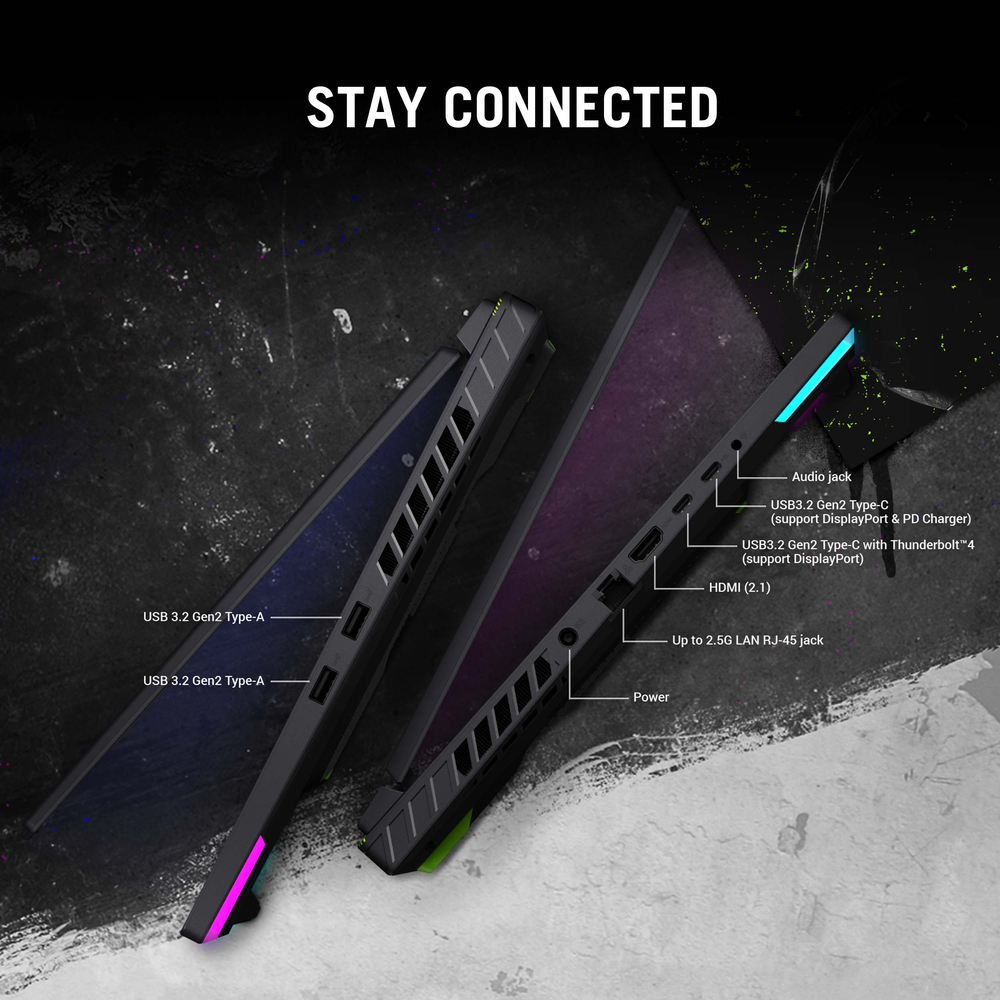

Stay Connected
When you need to plug into the big screen, the dedicated GPU powers an HDMI 2.1 port for the latest TVs and monitors, increasing total bandwidth from 18 to 48Gbps, and supporting up to 4K 120Hz and 8K 60Hz content. Two USB Type-C ports allow for plenty of connectivity—one for DisplayPort and power delivery, and a second with Thunderbolt 4 support.

Discover your next favourite game
Play hundreds of PC games on your new ROG device with PC Game Pass — including EA play. With new games added all the time, there’s always something new to play.*
*PC Game Pass: Subscription continues automatically at regular monthly price unless cancelled. Subject to xbox.com/subscriptionterms. Terms and exclusions apply. Game catalog varies over time, by region, and by device. All rights reserved. xbox.com/pcgamepass, ea.com/ea-play/terms.
Game with confidence thanks to the raw horsepower of the 2024 Strix G16. Powered by an AMD Ryzen™ 9 8940HX and an NVIDIA® GeForce® RTX 5060 (572 AI TOPS) Laptop GPU with a dedicated MUX Switch and NVIDIA Advanced Optimus, be ready to dominate the competition in all of the latest games. Sporting 16-inch and full-surround heat sinks with Tri-fan Technology, the Strix G16 is here to change the way you game.
Design | |
---|---|
Colour name | Eclipse Gray |
Product type | Laptop |
Market positioning | Gaming |
Housing material | Plastic |
Form factor | Clamshell |
Product colour | Black, Grey |
Country of origin | China |
Introduction year | 2025 |
Display | |
HD type | WUXGA |
Panel type | IPS-Level |
Display brightness | 300 cd/m² |
Display response rise/fall | 3 ms |
Contrast ratio (typical) | 1000:1 |
Touchscreen | No |
Display resolution | 1920 x 1200 pixels |
Display diagonal | 40.6 cm (16") |
Anti-glare screen | Yes |
Maximum refresh rate | 165 Hz |
RGB colour space | sRGB |
High Dynamic Range (HDR) technology | Dolby Vision |
Colour gamut | 100% |
Native aspect ratio | 16:10 |
High Dynamic Range (HDR) supported | Yes |
Processor | |
Processor generation | AMD Ryzen 8000 Series |
Processor cache type | L2 & L3 |
Processor frequency | 2.4 GHz |
Processor model | 8940HX |
Processor boost frequency | 5.3 GHz |
Processor cores | 16 |
Processor threads | 32 |
L3 cache | 64 MB |
L2 cache | 16 MB |
Processor manufacturer | AMD |
Processor family | AMD Ryzen™ 9 |
Memory | |
Memory form factor | SO-DIMM |
Internal memory | 16 GB |
Memory layout (slots x size) | 2 x 8 GB |
Internal memory type | DDR5-SDRAM |
Memory clock speed | 5600 MHz |
Memory slots | 2x SO-DIMM |
Maximum internal memory | 64 GB |
Storage | |
SSD form factor | M.2 |
Storage media | SSD |
Optical drive type | No |
Number of SSDs installed | 1 |
SSD capacity | 1 TB |
SSD interface | PCI Express 4.0 |
Card reader integrated | No |
Total storage capacity | 1 TB |
Total SSDs capacity | 1 TB |
NVMe | Yes |
Graphics | |
Discrete graphics card | Yes |
Discrete graphics card memory | 8 GB |
NVIDIA G-SYNC | Yes |
On-board graphics card family | AMD Radeon |
On-board graphics card | Yes |
On-board graphics card model | AMD Radeon 610M |
Discrete graphics card model | NVIDIA GeForce RTX 5060 |
Discrete graphics memory type | GDDR7 |
Discrete GPU manufacturer | NVIDIA |
On-board GPU manufacturer | AMD |
Audio | |
Audio system | Smart Amp |
Number of built-in speakers | 2 |
Built-in microphone | Yes |
Camera | |
Front camera | Yes |
Front camera HD type | Full HD |
Optical drive | |
Optical drive type | No |
Network | |
Mobile network connection | No |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi standards | Wi-Fi 6E (802.11ax) |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Bluetooth | Yes |
Bluetooth version | 5.3 |
Antenna type | 2x2 |
Ports & interfaces | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB Type-C DisplayPort Alternate Mode | Yes |
USB 2.0 ports quantity | 0 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
Ethernet LAN (RJ-45) ports | 1 |
Combo headphone/mic port | Yes |
USB Power Delivery (USB PD) | Yes |
USB4 Gen 3x2 ports quantity | 2 |
Power adapter barrel connector | 6.0 mm |
DC-in jack | Yes |
Keyboard | |
Pointing device | Touchpad |
Numeric keypad | No |
Keyboard backlit | Yes |
Keyboard backlit colour | RGB |
Keyboard backlit zone | 4-zone RGB |
Copilot key | Yes |
Software | |
---|---|
Operating system architecture | 64-bit |
Bundled software | Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
Trial software | 1-month trial for new Microsoft 365 customers. Credit card required, McAfee 30 days |
Operating system installed | Windows 11 Home |
Microsoft Copilot | Yes |
Technical details | |
Market positioning | Gaming |
Housing material | Plastic |
Form factor | Clamshell |
Product colour | Black, Grey |
Discrete graphics card memory | 8 GB |
Commodity Classification Automated Tracking System (CCATS) | 8471300000 |
Battery | |
Battery technology | Lithium-Ion (Li-Ion) |
Number of battery cells | 4 |
Battery capacity | 90 Wh |
Fast charging | Yes |
Fast charging time (50%) | 30 min |
Power | |
AC adapter power | 280 W |
AC adapter frequency | 50 - 60 Hz |
AC adapter input voltage | 100 - 240 V |
AC adapter output current | 14 A |
AC adapter output voltage | 20 V |
USB Power Delivery (USB PD) | Yes |
USB Type-C charging port | Yes |
USB Type-C required charging power (min) | 45 W |
USB Type-C required charging power (max) | 100 W |
DC-in jack | Yes |
Security | |
Password protection | Yes |
Trusted Platform Module (TPM) | Yes |
Password protection type | BIOS, User |
Weight & dimensions | |
Width | 354 mm |
Depth | 264 mm |
Height (front) | 2.26 cm |
Height (rear) | 3.04 cm |
Weight | 2.5 kg |
Packaging data | |
Package weight | 2.86 kg |
Package width | 465 mm |
Package height | 335 mm |
Package depth | 90 mm |
AC adapter included | Yes |
Features | |
Country of origin | China |
Supplier features | |
Country of origin | China |
Packaging content | |
AC adapter included | Yes |
Logistics data | |
Commodity Classification Automated Tracking System (CCATS) | 8471300000 |
Other features | |
On-board graphics card | Yes |
Audio system | Smart Amp |
AC adapter included | Yes |
Anti-glare screen | Yes |
Country of origin | China |
