ARCTIC M2 Pro (Black) - SSD Cooler for M.2 Drives

SKU
ACOTH00001A
£8.20 £6.83
In stock
Passive Cooler for 2280 M.2 SSD, Black
More Information
Type Heatsink/Radiatior
Suitable location M.2 NVMe SSD
SKU ACOTH00001A
EAN 4895213704175
Manufacturer ARCTIC
Availability Y
Product Videos View Video
PDF URLs View PDF

Enables Consistently High Read and Write Speeds

The M2 Pro is available in black and silver. Its additional mass helps to effectively cool the chips, enable faster cooling and reliable performance of M.2 SSDs. Its slim design makes it compatible with the PlayStation 5 and provides optimal cooling for retrofitted SSD hard disks. It can be installed without screws or rubber bands thanks to the intelligent click system.

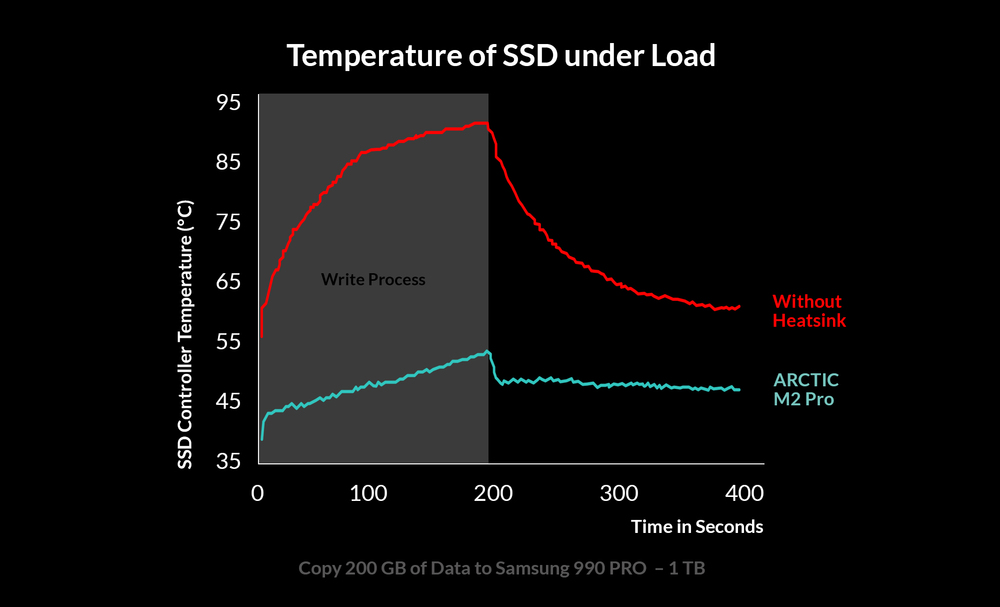

Efficient Heat Dissipation

Efficient Heat Dissipation

Thanks to its additional mass, the ARCTIC M2 Pro effectively dissipates heat from the chips and passes it on to the environment, resulting in cooler SSD and faster cooling off.

Measurements taken at 25 °C air temperature inside PC case. Without a heat sink, thermal throttling can be expected at higher temperatures.

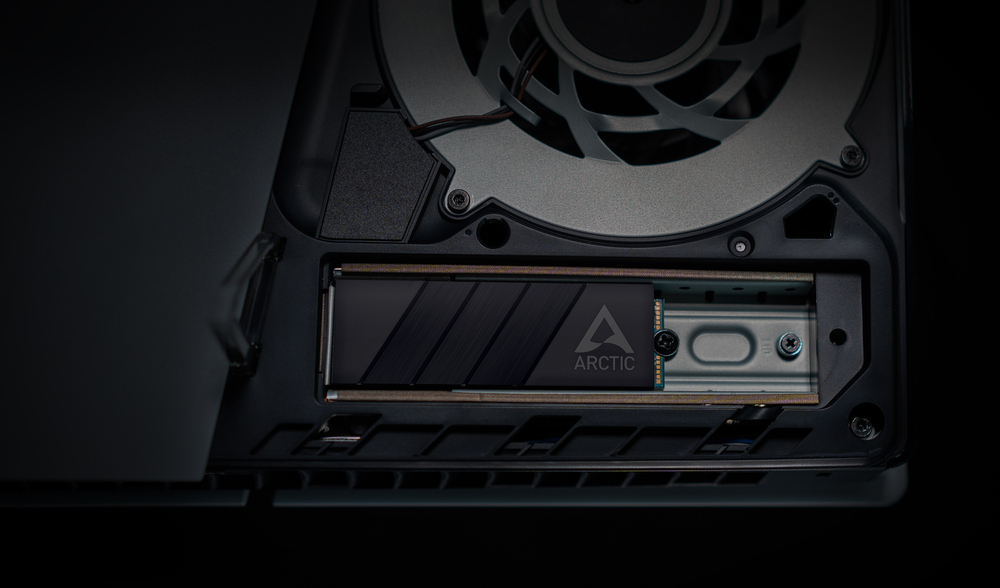

PS5 Compatible M.2 SSD Cooling

PS5 Compatible M.2 SSD Cooling

It’s possible to expand the storage capacity of the PlayStation 5 by retrofitting a fast M.2 SSD. Sony expressly emphasizes in the instructions that this M.2 storage medium requires a heat sink. The ARCTIC M2 Pro meets the specified requirements and is therefore suitable for installation in the PS5 and PS5 Slim.

TP-3 Thermal Pads Included

TP-3 Thermal Pads Included

The M2 Pro uses two precisely cut ARCTIC TP-3 thermal pads. Due to their softness, they are particularly suitable as thermal pads for M.2 SSDs, as they adapt optimally to the height difference of the heat-generating components. In addition, the TP-3 offers excellent thermal conductivity, is easy to handle and safe to use.

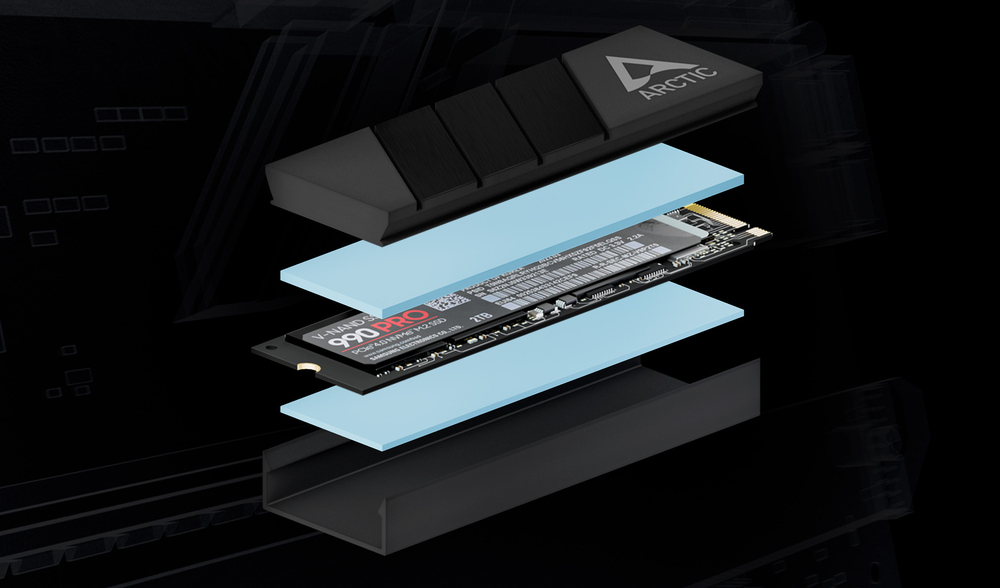

Easy Assembly for Single- and Double-Sided SSDs

Easy Assembly for Single- and Double-Sided SSDs

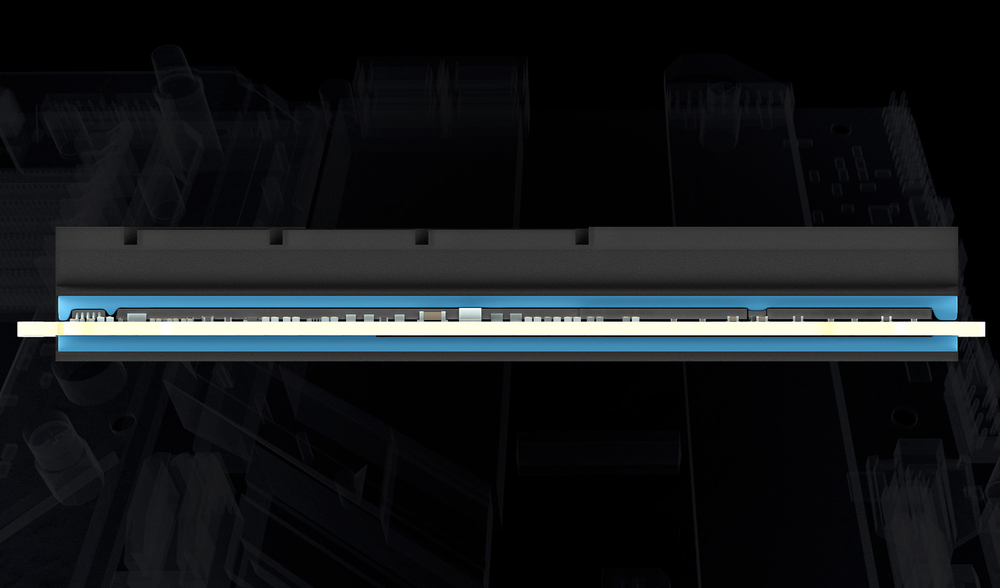

The mounting of the ARCTIC M2 Pro does not require screws or rubber bands. Instead, the SSD is placed between the heat sinks using a click process. The NVMe SSD cooler is designed for both single-sided and double-sided 2280 M.2 SSDs. The height differences are compensated for by the included thermal pad.

Cooling Parts

Matching accessories for our product range — PST cable, Case Fan Hub and more.
Performance
Suitable locationM.2 NVMe SSD
TypeHeatsink/Radiator
Quantity per pack1 pc(s)
Design
MaterialAluminium
Product colourBlack
Technical details
TypeHeatsink/Radiator
MaterialAluminium
Colour
Product colourBlack
Weight & dimensions
Package depth78 mm
Package width25 mm
Package height14 mm
Width24.2 mm
Package weight44 g
Depth73 mm
Height10.5 mm
Weight40.5 g
Packaging data
Package depth78 mm
Package width25 mm
Package height14 mm
Package weight44 g
Packaging content
Thermal pad includedYes
