ARCTIC P14 Pro PST CO 140 mm PWM Fan with Cable Splitter for Continuous Operation
SKU
ACFAN00316A
£10.92
£9.10
In stock
P14 Pro PST CO 140 mm PWM Fan with Cable Splitter for Continuous Operation
Category: Computer Cooling Components
| SKU | ACFAN00316A |
|---|---|
| EAN | 4895265000409 |
| Manufacturer | ARCTIC |
| Availability | Y |
| PDF URLs |
View PDF |
Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

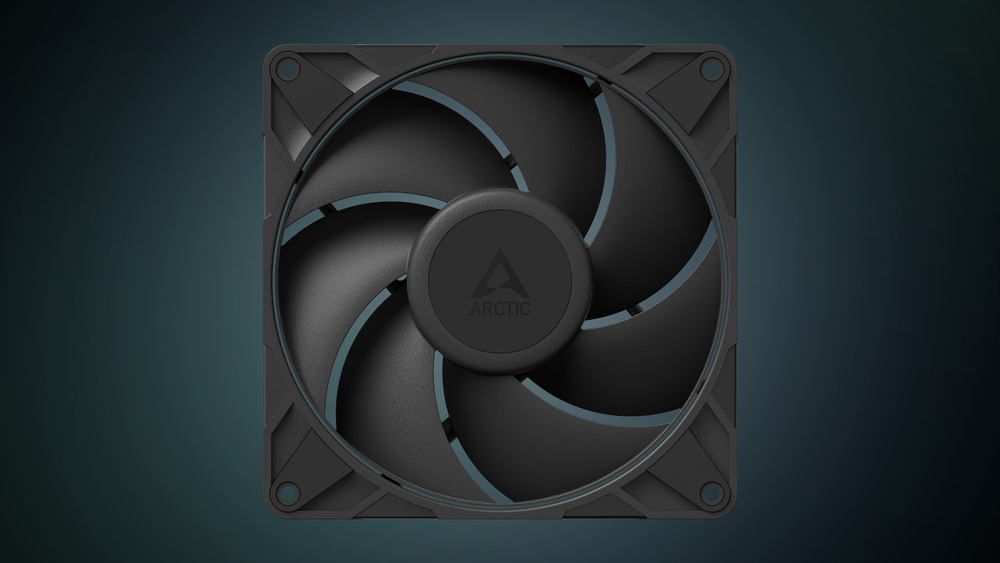

Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.

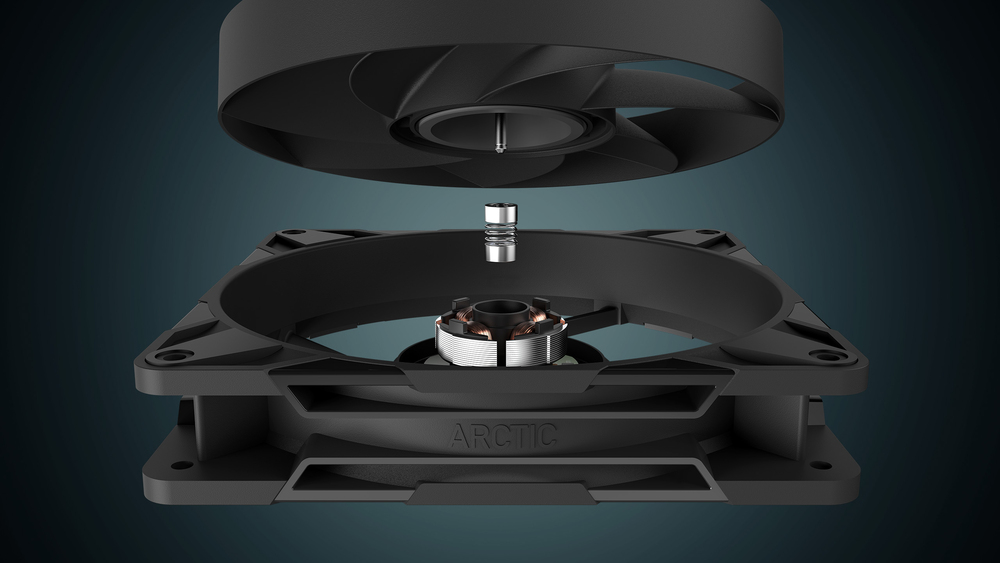

Optimized Bearing-Shaft Design (DBB)
A dual ball bearing with an extended rotor shaft ensures high durability and maximum lifespan at high rotational speeds.
Automated Two-Plane Balancing
An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

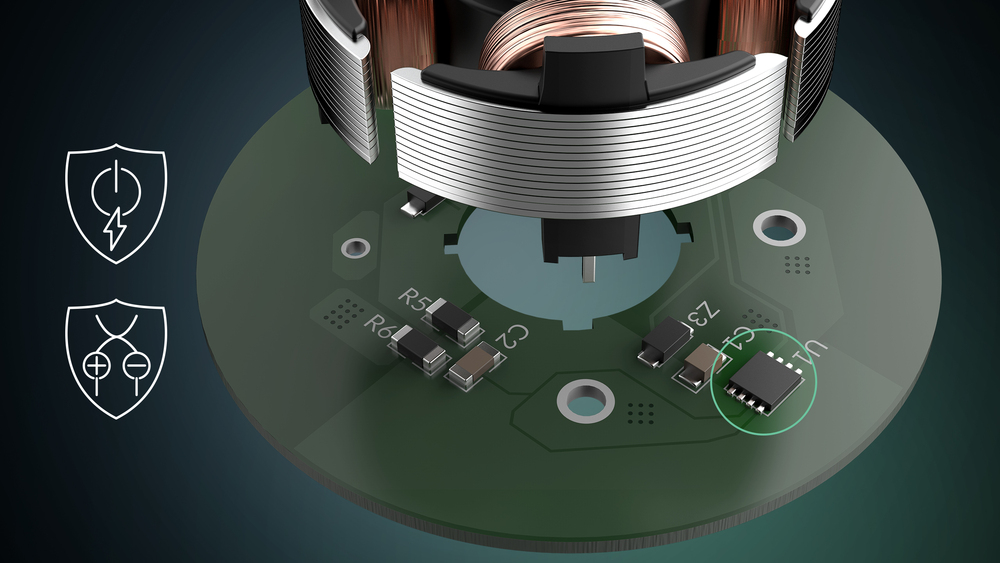

SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

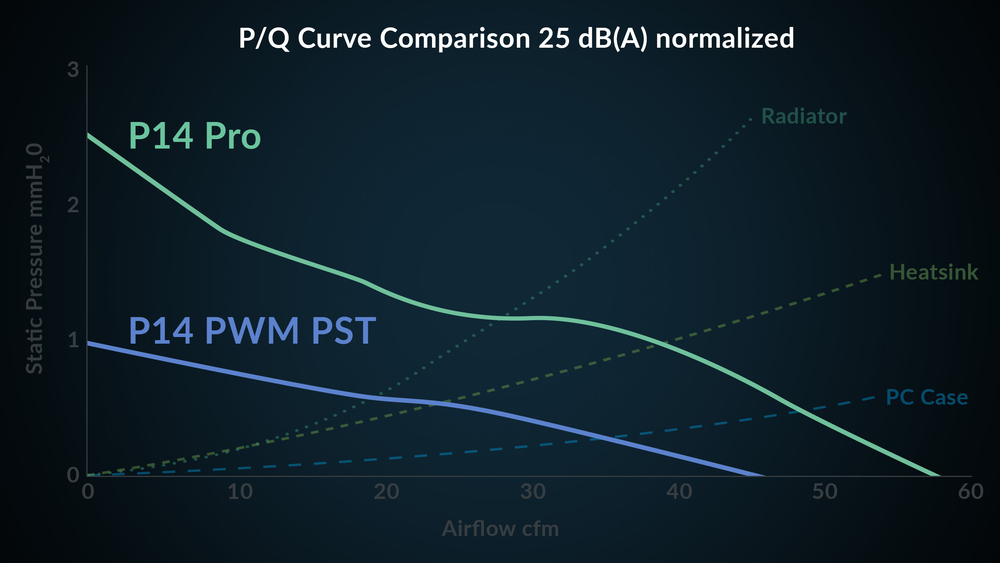

More Power – Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

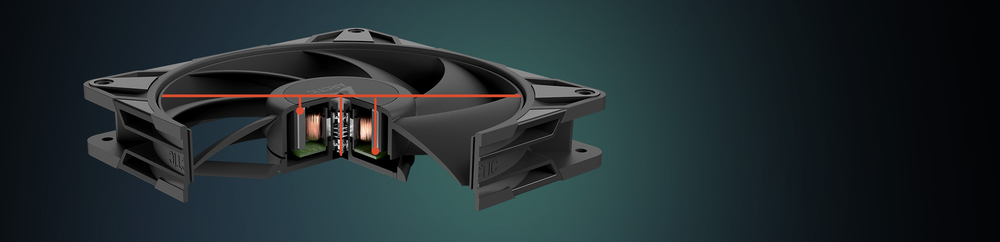

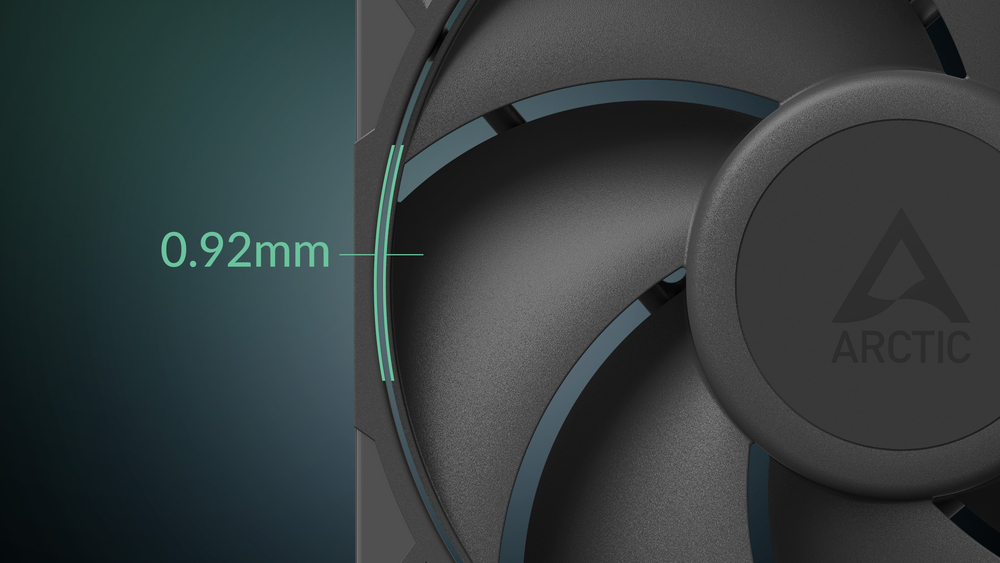

Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.

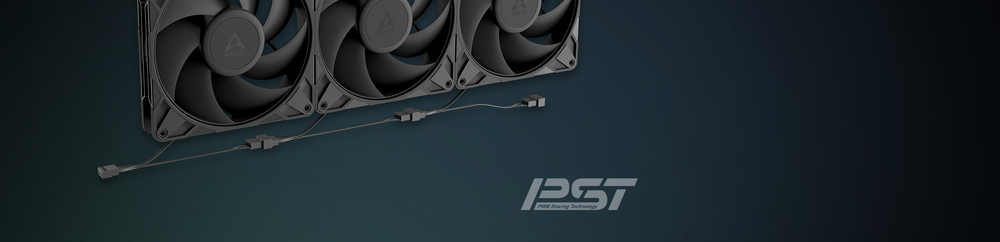

PST – PWM-Based Synchronized Fan Control
An additional PWM connector allows multiple fans to be synchronized in series using a single header.
P14 Pro PST CO 140 mm PWM Fan with Cable Splitter for Continuous Operation
- Fan Speed: 400-2500 rpm (PWM controlled), 0 rpm below 5% PWM
- Airflow:1107 cfm | 186 m3/h
- Static Pressure: 5.2 mmH2O
- Fan Bearing: Dual Ball Bearing
- Cable Length: 400 mm + 80 mm Daisy-Chain Cable
- Connector: 4-Pin Fan Plug + 4-Pin Socket
Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.
Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.
Optimized Bearing-Shaft Design (DBB)
A dual ball bearing with an extended rotor shaft ensures high durability and maximum lifespan at high rotational speeds.
Automated Two-Plane Balancing
An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.
SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
More Power - Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) - ideal for quiet, powerful cooling.
Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
PST – PWM-Based Synchronized Fan Control
An additional PWM connector allows multiple fans to be synchronized in series using a single header.
6-Year Warranty - Because Satisfaction Matters
Our products are tested under extreme conditions. The 6-year warranty isn't just a promise - it's a testament to our confidence in their durability.
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin + 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 400 RPM |
| Rotational speed (max) | 2500 RPM |
| Bearing type | Dual ball bearing |
| Type | Fan |
| Operating temperature (T-T) | 0 - 40 °C |
| Fan diameter | 14 cm |
| Maximum airflow | 110 cfm |
| Maximum air pressure | 5.2 mmH2O |
| Airflow | 186 m³/h |
| Quantity per pack | 1 pc(s) |
| Design | |
| Fan connector | 4-pin + 4-pin |
| Product colour | Black |
| Cable length | 0.48 m |
| Technical details | |
| Type | Fan |
| Fan diameter | 14 cm |
| Maximum airflow | 110 cfm |
| Maximum air pressure | 5.2 mmH2O |
| Airflow | 186 m³/h |
| Cable length | 0.48 m |
| Fan connector | 4-pin + 4-pin |
| Ports & interfaces | |
| Fan connector | 4-pin + 4-pin |
| Power | |
| Rated voltage | 12 V |
| Starting voltage | 5 V |
| Rated current | 0.35 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 140 x 140 x 27 mm |
| Package depth | 145 mm |
| Package width | 145 mm |
| Package height | 32 mm |
| Fan weight | 242 g |
| Package weight | 294 g |
| Cable length | 0.48 m |
| Packaging data | |
| Package depth | 145 mm |
| Package width | 145 mm |
| Package height | 32 mm |
| Package weight | 294 g |
| Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
