ARCTIC P14 Pro PST (White) 140 mm PWM Fan with Cable Splitter
SKU
ACFAN00317A
£9.01
£7.51
In stock

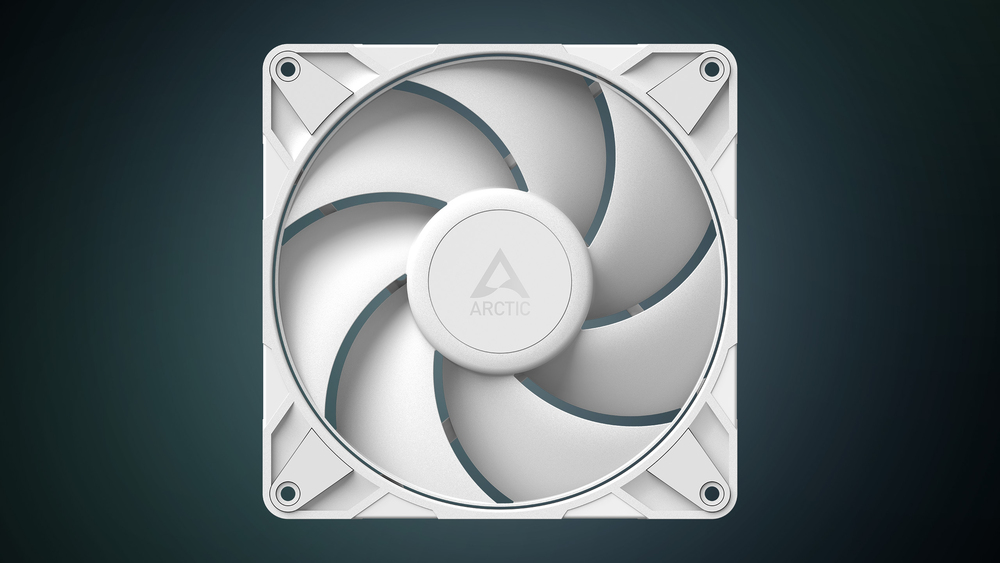

P14 Pro PST (White) 140 mm PWM Fan with Cable Splitter
Category: Computer Cooling Components
| SKU | ACFAN00317A |
|---|---|
| EAN | 4895265000416 |
| Manufacturer | ARCTIC |
| Availability | Y |
| PDF URLs |
View PDF |
Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.
Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.

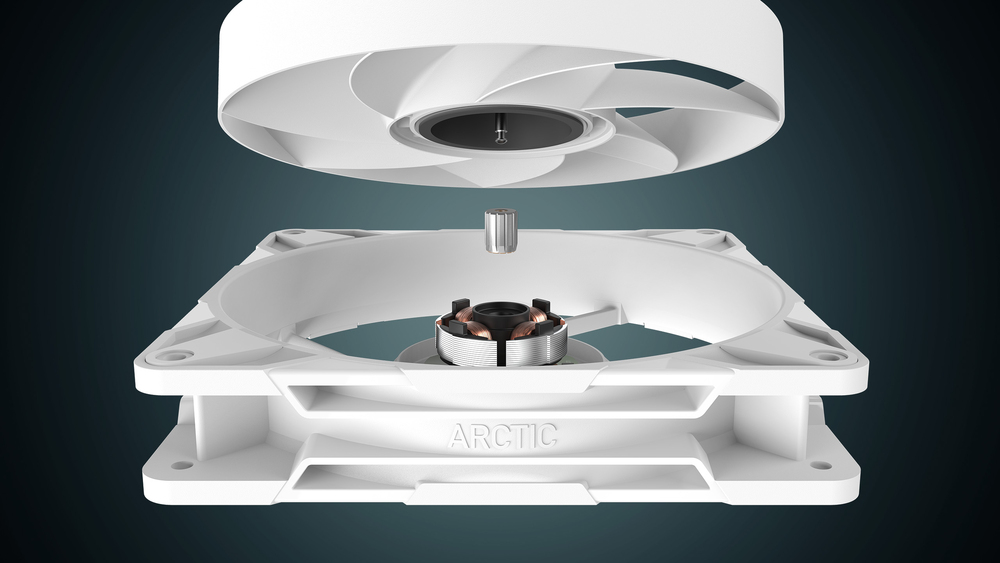

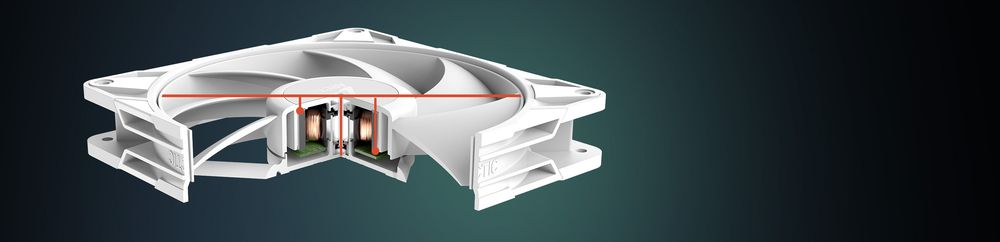

Optimized Bearing-Shaft Design (FDB)
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
Automated Two-Plane Balancing
An automated two-level measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing mass with pinpoint accuracy at two different depth levels.

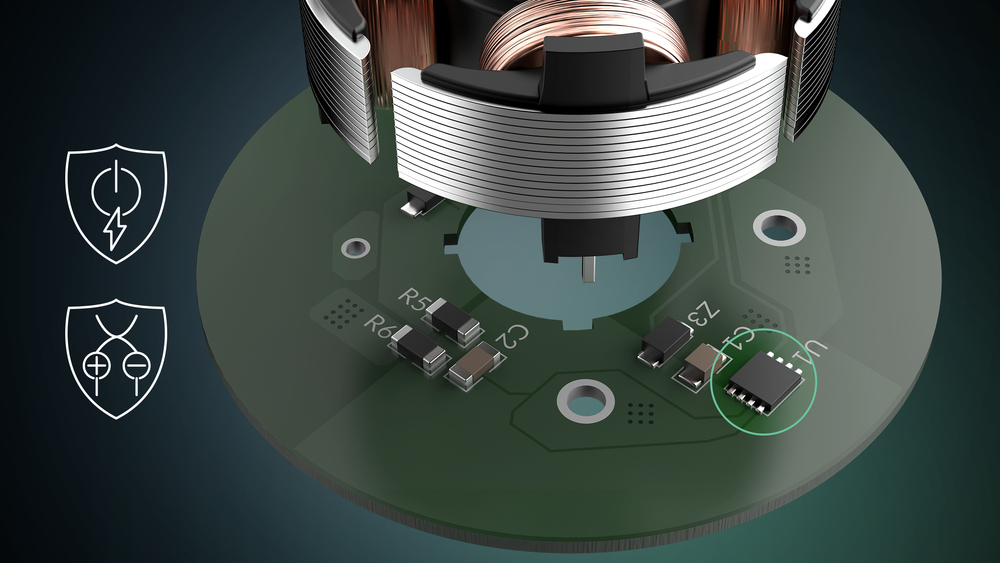

SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

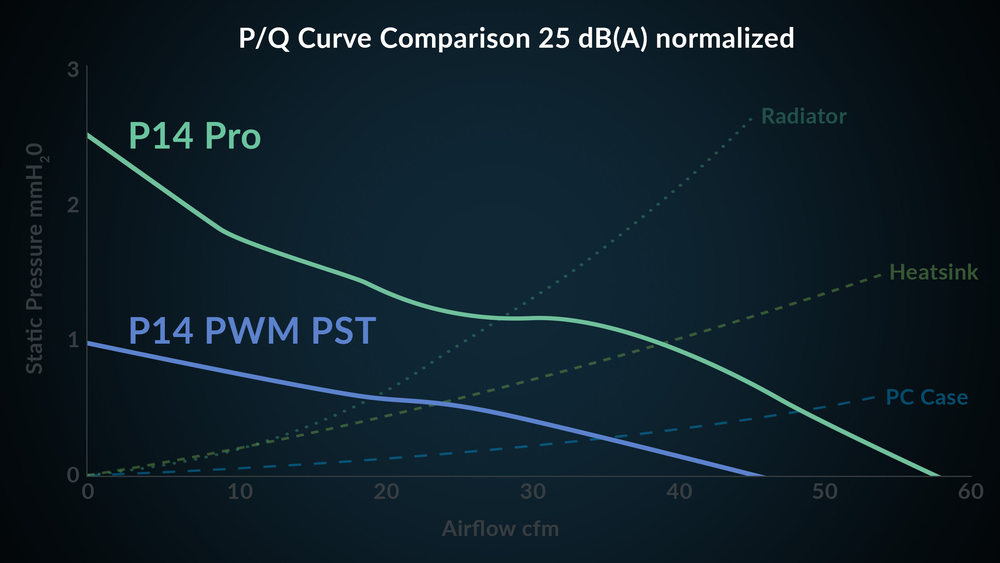

More Power – Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

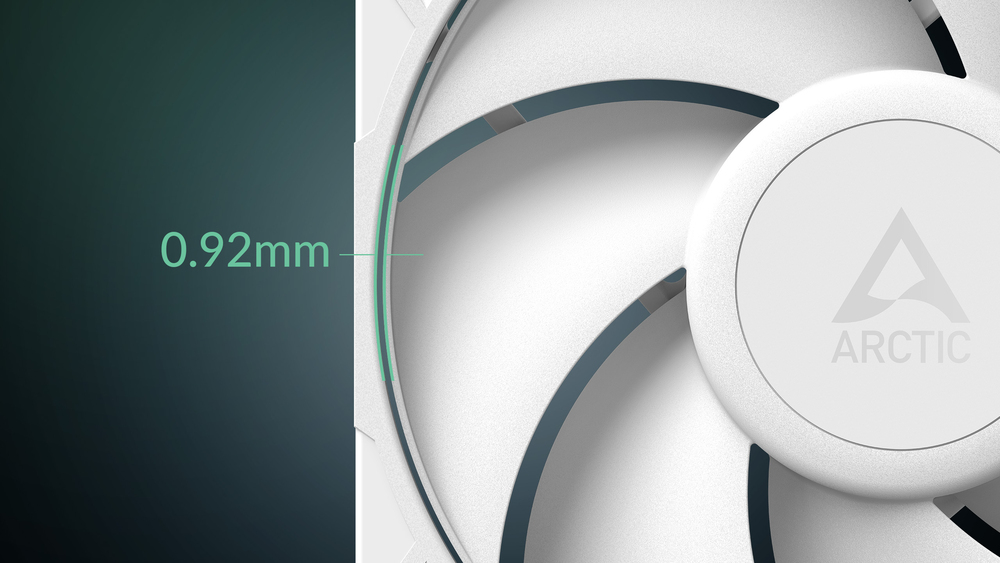

Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.

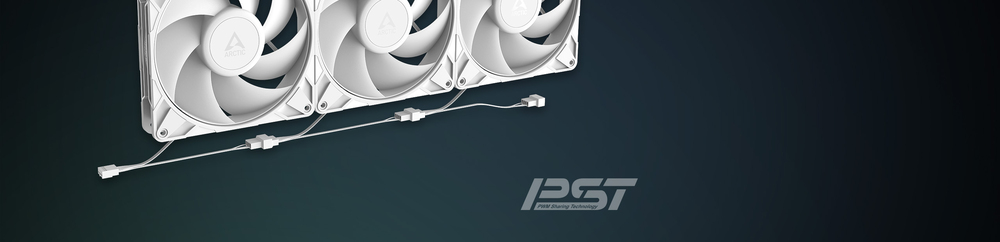

PST – PWM-Based Synchronized Fan Control
An additional PWM connector allows multiple fans to be synchronized in series using a single header.
P14 Pro PST 140 mm PWM Fan with Cable Splitter
- Fan Speed: 400-2500 rpm (PWM controlled), 0 rpm below 5% PWM
- Airflow: 110 cfm | 186 m3/h
- Static Pressure: 5.2 mmH2O
- Fan Bearing: Fluid Dynamic Bearing
- Cable Length: 400 mm + 80 mm Daisy-Chain Cable
- Connector: 4-Pin Fan Plug + 4-Pin Socket
Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.
Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.
Optimized Bearing-Shaft Design (FDB)
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
Automated Two-Plane Balancing
An automated two-level measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing mass with pinpoint accuracy at two different depth levels.
SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
More Power - Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) - ideal for quiet, powerful cooling.
Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
PST – PWM-Based Synchronized Fan Control
An additional PWM connector allows multiple fans to be synchronized in series using a single header.
6-Year Warranty - Because Satisfaction Matters
Our products are tested under extreme conditions. The 6-year warranty isn't just a promise - it's a testament to our confidence in their durability.
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin + 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 400 RPM |
| Rotational speed (max) | 2500 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Type | Fan |
| Fan diameter | 14 cm |
| Maximum airflow | 110 cfm |
| Maximum air pressure | 5.2 mmH2O |
| Airflow | 186 m³/h |
| Quantity per pack | 1 pc(s) |
| Design | |
| Fan connector | 4-pin + 4-pin |
| Product colour | White |
| Cable length | 0.48 m |
| Technical details | |
| Type | Fan |
| Fan diameter | 14 cm |
| Maximum airflow | 110 cfm |
| Maximum air pressure | 5.2 mmH2O |
| Airflow | 186 m³/h |
| Cable length | 0.48 m |
| Fan connector | 4-pin + 4-pin |
| Ports & interfaces | |
| Fan connector | 4-pin + 4-pin |
| Power | |
|---|---|
| Rated voltage | 12 V |
| Starting voltage | 5 V |
| Rated current | 0.35 A |
| Colour | |
| Product colour | White |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 140 x 140 x 27 mm |
| Package depth | 145 mm |
| Package width | 145 mm |
| Package height | 32 mm |
| Fan weight | 242 g |
| Package weight | 294 g |
| Cable length | 0.48 m |
| Packaging data | |
| Package depth | 145 mm |
| Package width | 145 mm |
| Package height | 32 mm |
| Package weight | 294 g |
| Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
